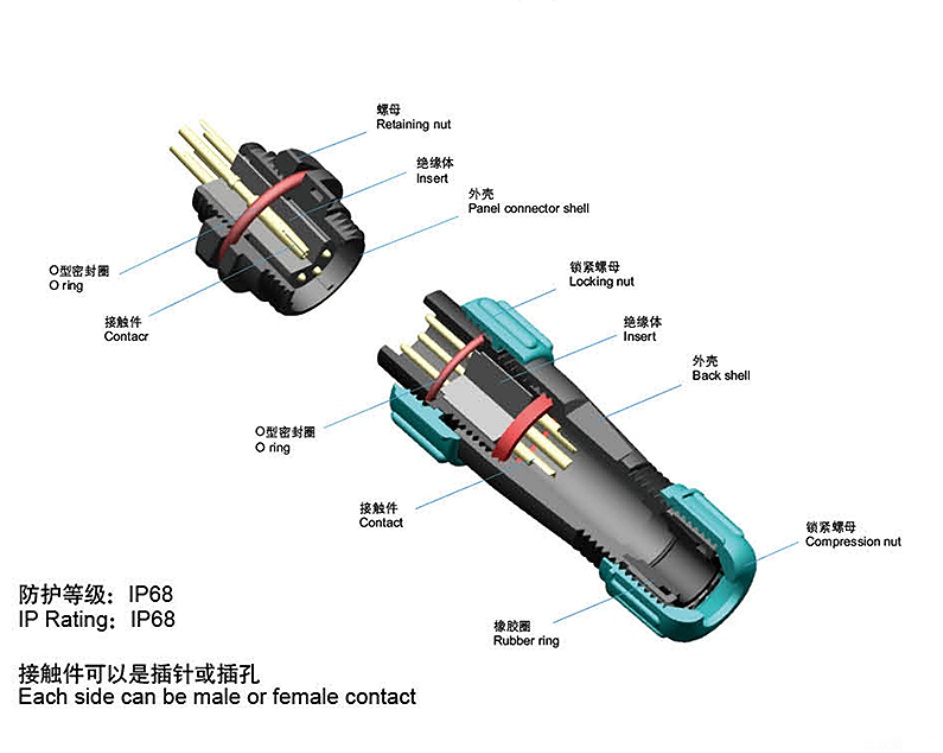

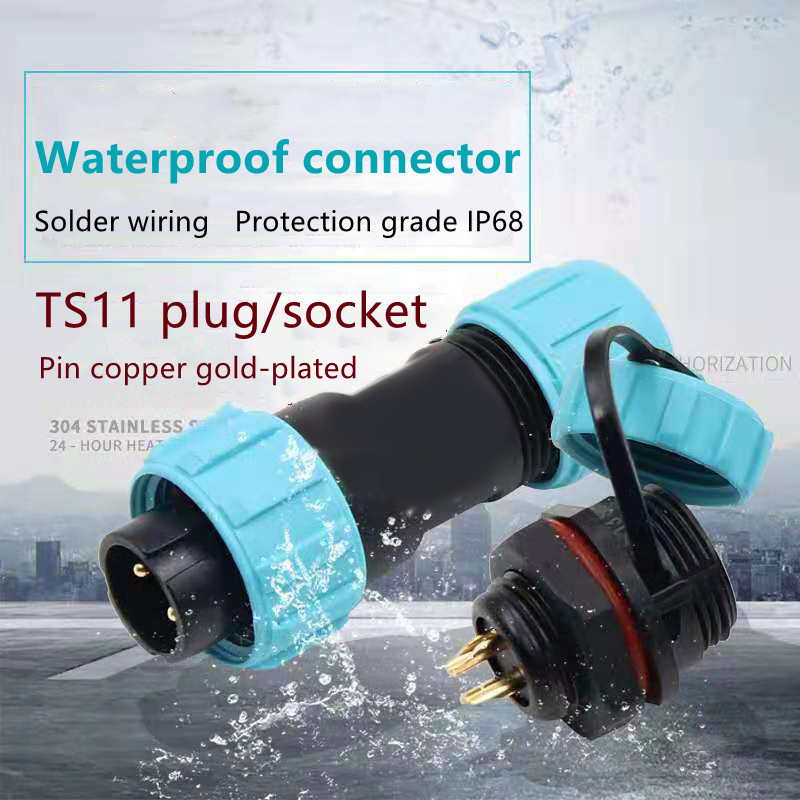

Waterproof Design: The SP1310 connector series offers IP68-rated protection, making it suitable for use in harsh environments where exposure to moisture, dust, and other contaminants is common.

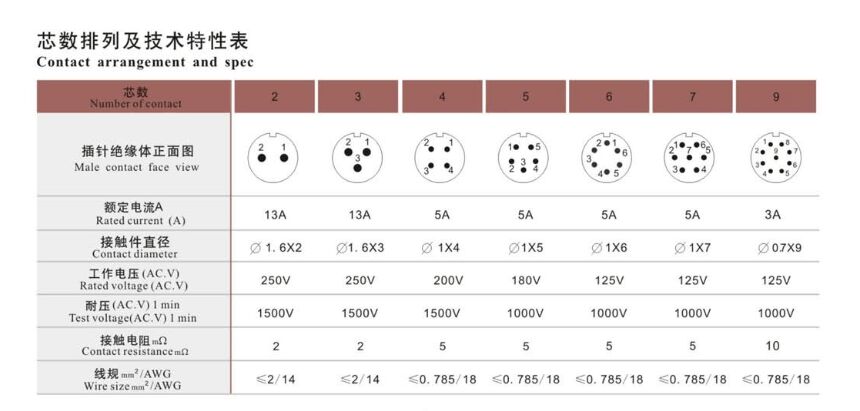

Versatile Connectivity: Available in different configurations, including 2/3/4/5/6/7/9 pin options, the SP1310 connector provides flexibility to accommodate various connection requirements.

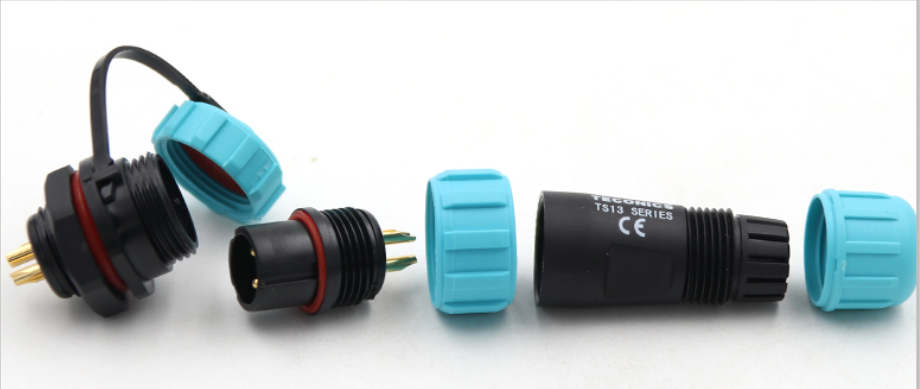

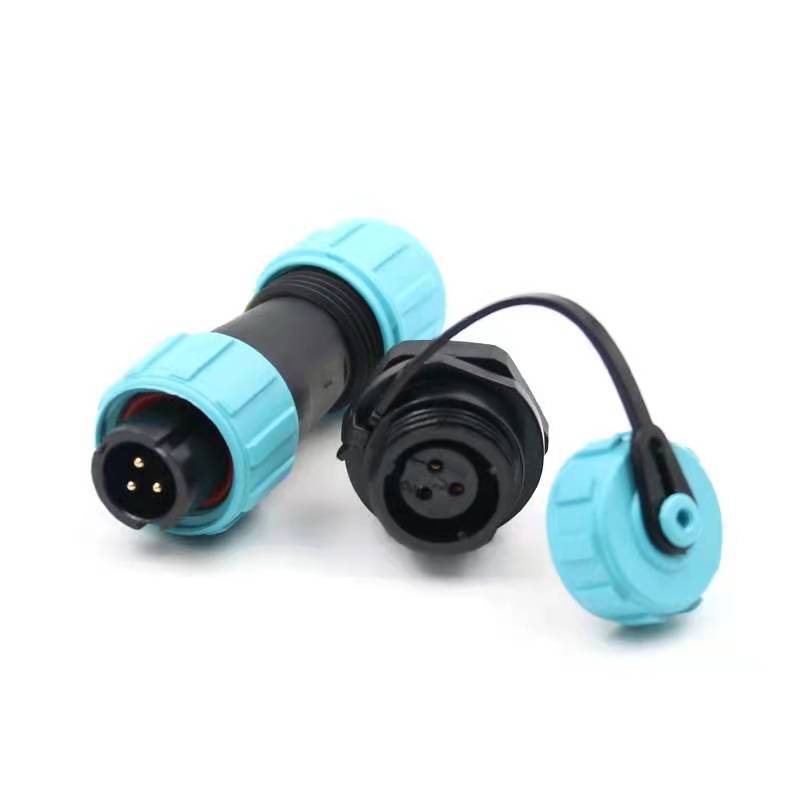

Male and Female Versions: The SP1310 series includes both male and female connector options, ensuring compatibility with different devices and equipment.
Highly Durable: Constructed with high-quality materials, these connectors are built to withstand demanding conditions, offering reliable performance even in rugged environments.
Easy Installation: Designed for simple and secure installation, the SP1310 connectors feature soldering connections, ensuring a stable and durable connection between cables.
Wide Application Range: From outdoor lighting systems to industrial machinery, the SP1310 connector series finds applications in various fields where dependable and waterproof connections are essential.
| Model Number: | SP13 |
| Type: | BNC |
| Application: | Power |
| Gender: | male/female |
| MOQ: | 1 Sets |
| Coupling: | Threaded |
| Rated voltage : | 250/200/180/125 V |
| Temperature Range: | -40℃~+85℃ |
| Termination: | Solder |
| Mating Cycles: | 500 |

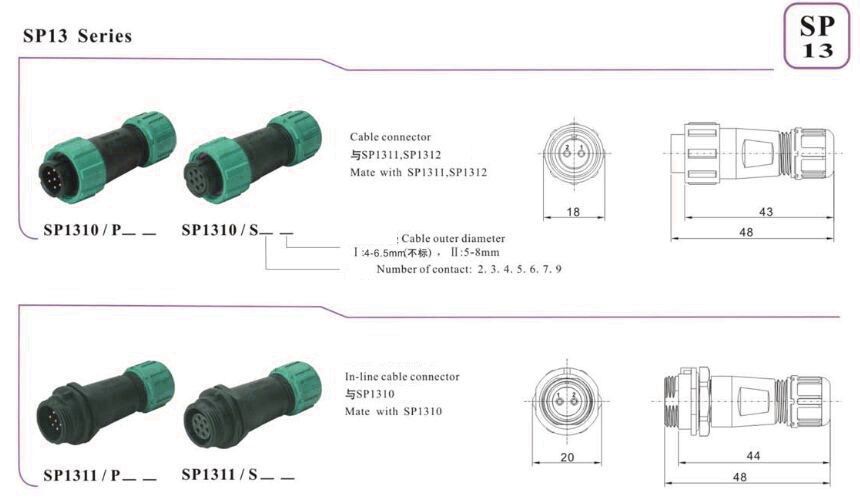

| Cable outer diameter range: | SP13：4-6.5mm, 5-8mm |

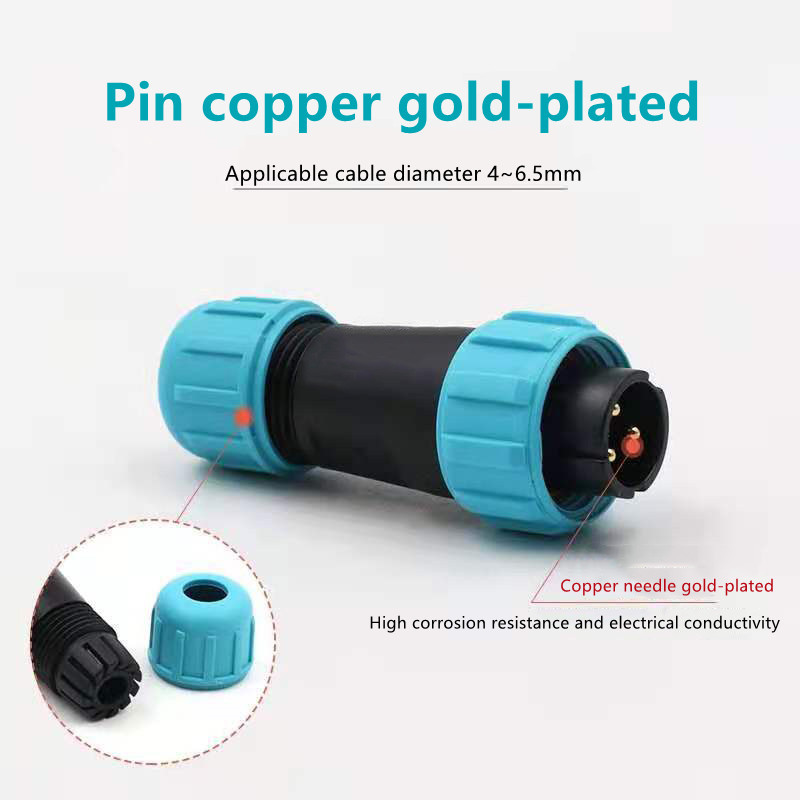

| Contact material: | Brass Gold Plated |
| Insert material: | PPS,max temperature 260℃ |
| Shell material: | PC, Nylon66, fire resistance: V-0 |
| Payment terms: | 100% T/T, Western Union , Paypal,Mastercard crecit card,VISA,e-Checking |
Materials and Features
