Overview
- Places of Origin:
|
Xiamen,Fujian, China |
| Brand Name: |
Leaka |
| Model Number: |
SP17 |
| Type: |
BNC |
| Application: |
Power |
| Gender: |
male/female |
| Product name: |
SP1710/P2 SP1711/S2 Green SP17 IP68 waterproof electrical wire connector |
| MOQ: |
1 Sets |
| Coupling: |
Threaded |
| Rated voltage : |
500/400V |
| Temperature Range: |
-40℃~+85℃ |
| Termination: |
Solder / Crimp |
| Mating Cycles: |
500 |
| Cable outer diameter range: |
SP17: 6-10mm |
| Contact material: |
Brass Gold Plated |
| Insert material: |
PPS,max temperature 260℃ |
| Shell material: |
PC, Nylon66, fire resistance: V-0 |
| Payment terms: |
100% T/T, Western Union , Paypal,Mastercard crecit card,VISA,e-Checking |
- Selling Units: Single item
- Single package size: 11X8X4 cm
- Single gross weight: 0.300 kg
Lead Time:
|
|
|
|
|
>1000 |
| Est. Time(days) |
|
25 |
35 |
|
Product Description
|
|

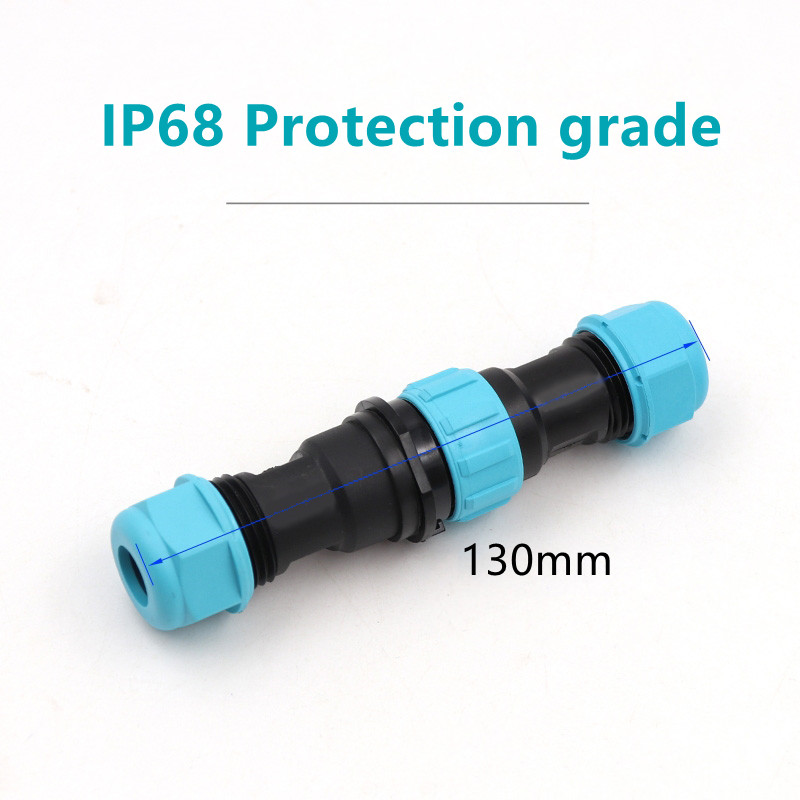

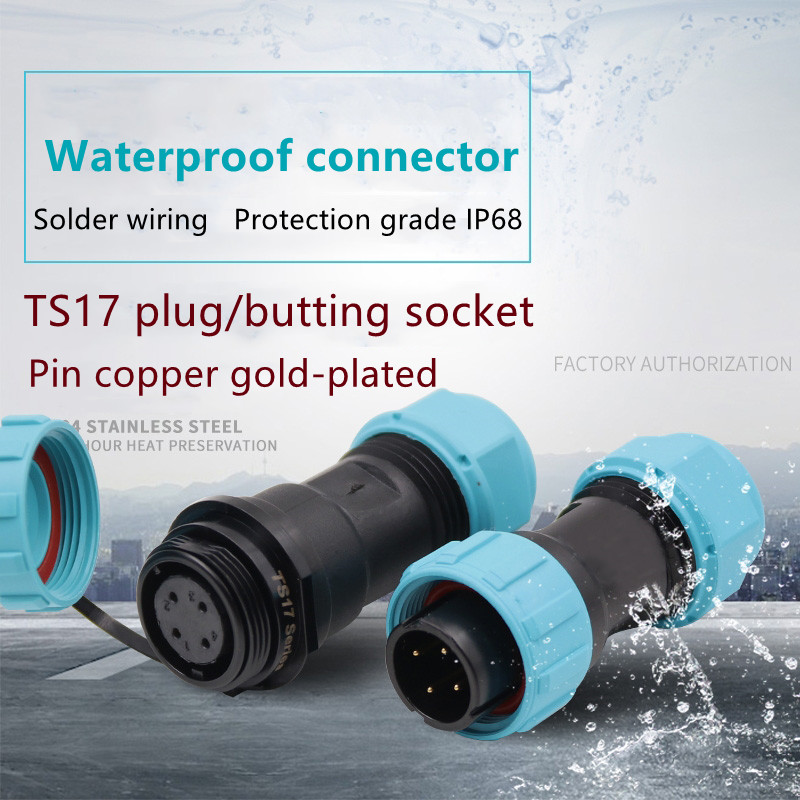

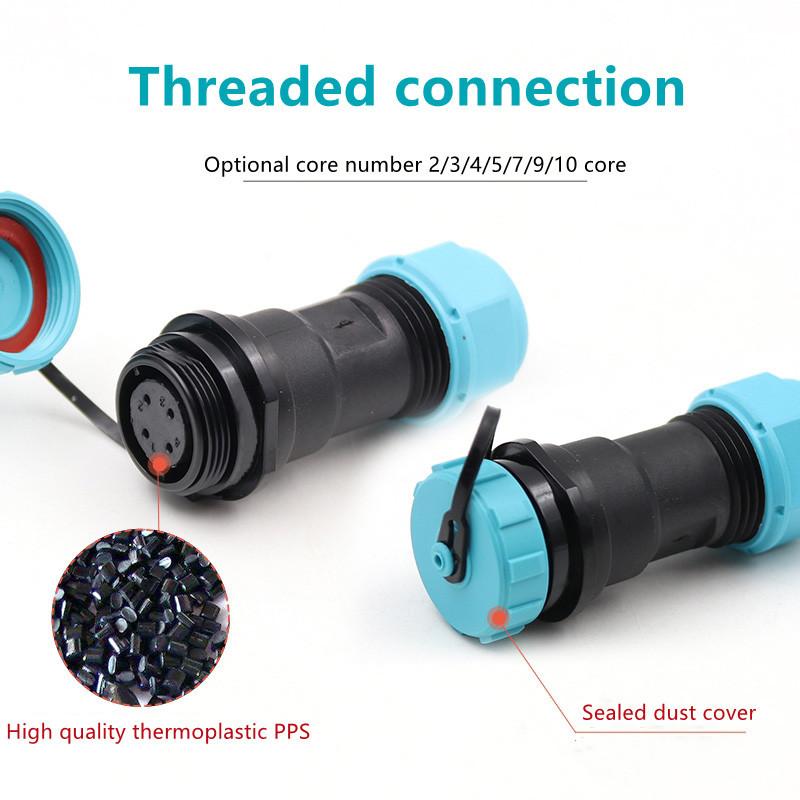

SP1710/P2 SP1711/S2 Green SP17 IP68 waterproof electrical wire connector |
| Insulation resistance |
2000MΩ |
| Rated current |
|
| Rated voltage |
|
| Contact resistance |
2.5/5 mΩ |
| Wire size |
|

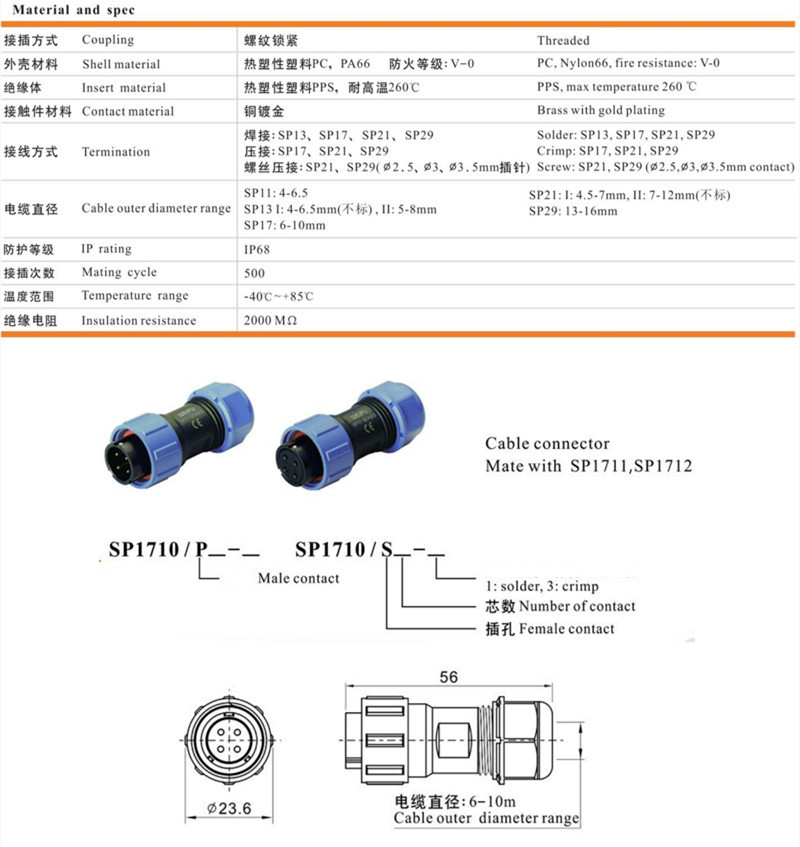

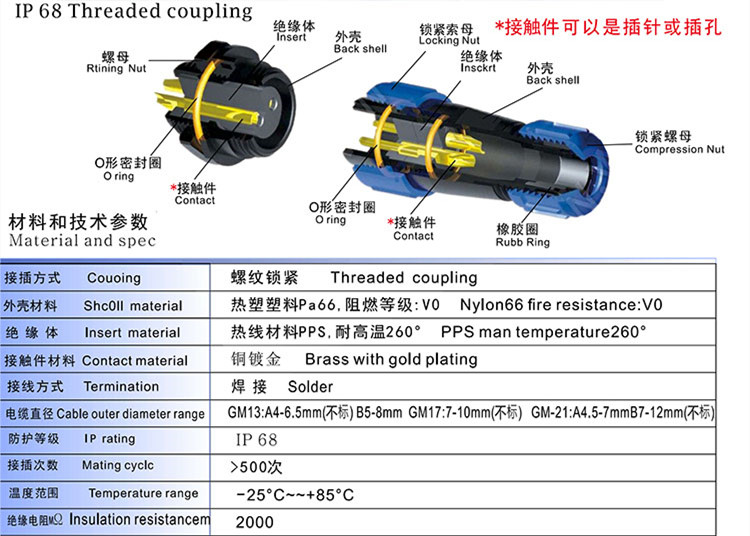

Material and spec
| Coupling |
Threaded |
| Shell material |
PC: Panel connector shell, Inser housing shell
Nylone66: Locking nut , Back shell, Compressing nut,Retaining nut
Fire resistance: V-0 |
| Insert material |
PPS, max temperature260℃ |

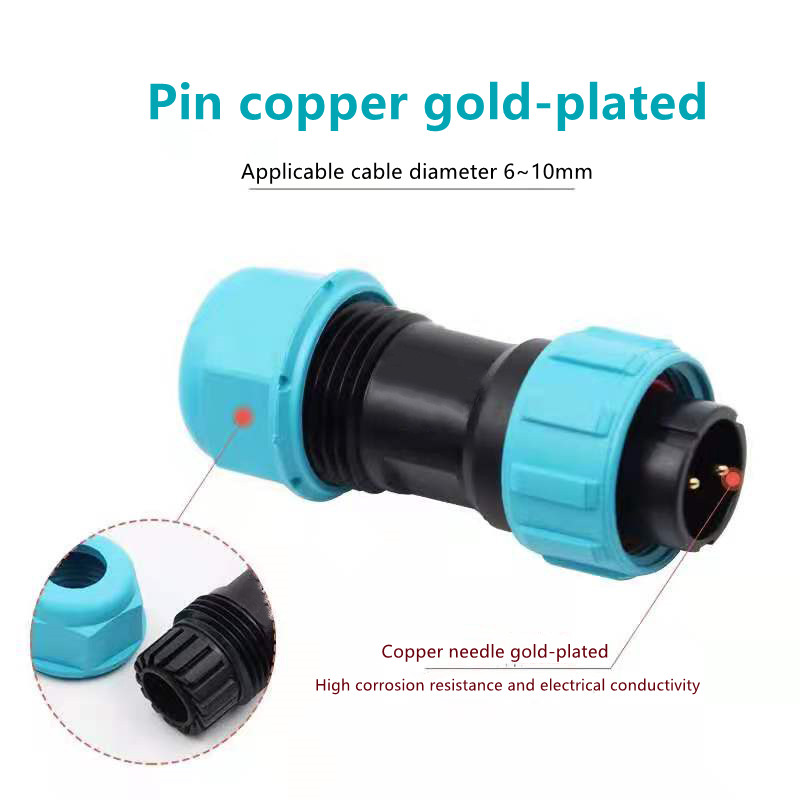

| Contact material |
Brass with gold plating |
| Termination |
Solder: SP11, SP13, SP17, SP21,SP29
Crimp: SP17, SP21, SP29
Screw: SP21,SP29 (∅2.5，∅3，∅3.5mm contact) |
| IP rating |
IP68 |
| Mating cycle |
500 |
| Temperature range |
-40℃~+85℃ |
| Insulation resistance (MΩ) |
2000 |
Suitable for high-speed rail, ships, LED displays, lighting, solar energy, new energy vehicles, precision machinery and other equipment, electrical connection wires and cables directly conductive transmission signals.
Company Profile
Certifications
Packaging & Shipping
FAQ
Q1: Are you trading company or manufacturer?
A1: We are professional manufacturer in connectors and wire harness
products. And we trade our products with our clients directly.
Q2: Can you do OEM and ODM?
A2: Yes, OEM and ODM are both acceptable. The material, color, style can customize, the basic quantity we will advise after we discuss.
Q3: When can I get the price?
A3: Usually we quote within 1 hours after we get your inquiry.
Q4: What’s your MOQ?
A4: If we have the products in stock, it will be no MOQ. If we need to produce, we can discuss the MOQ according to customer’s exact situation.
Q5: Do you provide sample ? Is it free?
A5: If the sample is low value, we will provide the free samples to test the quality. But
for some high value samples, we need to collect the sample charge.We will send the samples by express. Please pay the freight in advance and we will refund the freight when you place a larger order with us.
Q6: What is the normal lead time?
A6: For stock products, we will send the goods to you within 7 days after receiving the payment.If we don't have inventory, the production time is usually 5-15 days.
Q7: What is your term of payment?
A7: Sample order: 100% prepayment before shipping;
Bulk order:30% down payment before producing and 70% balance payment before shipping.
Q8: Which payment form you can accept?
A8: T/T, Mastercard credit card,VISA,e-Checking,Western Union, PayPal etc. We accept any convenient and swift payment
