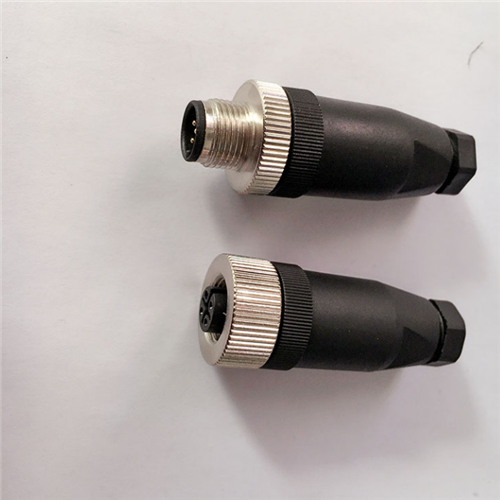

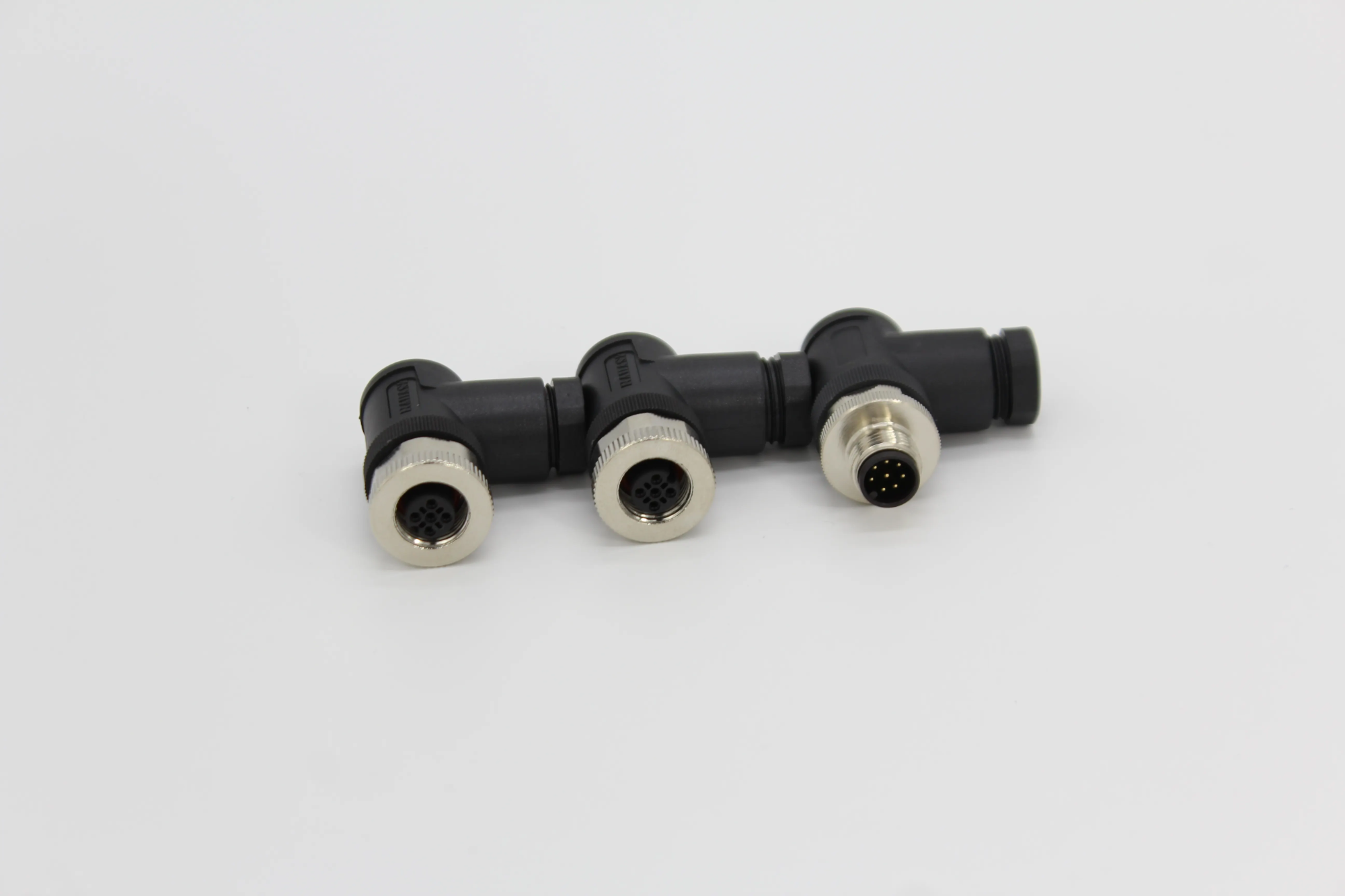

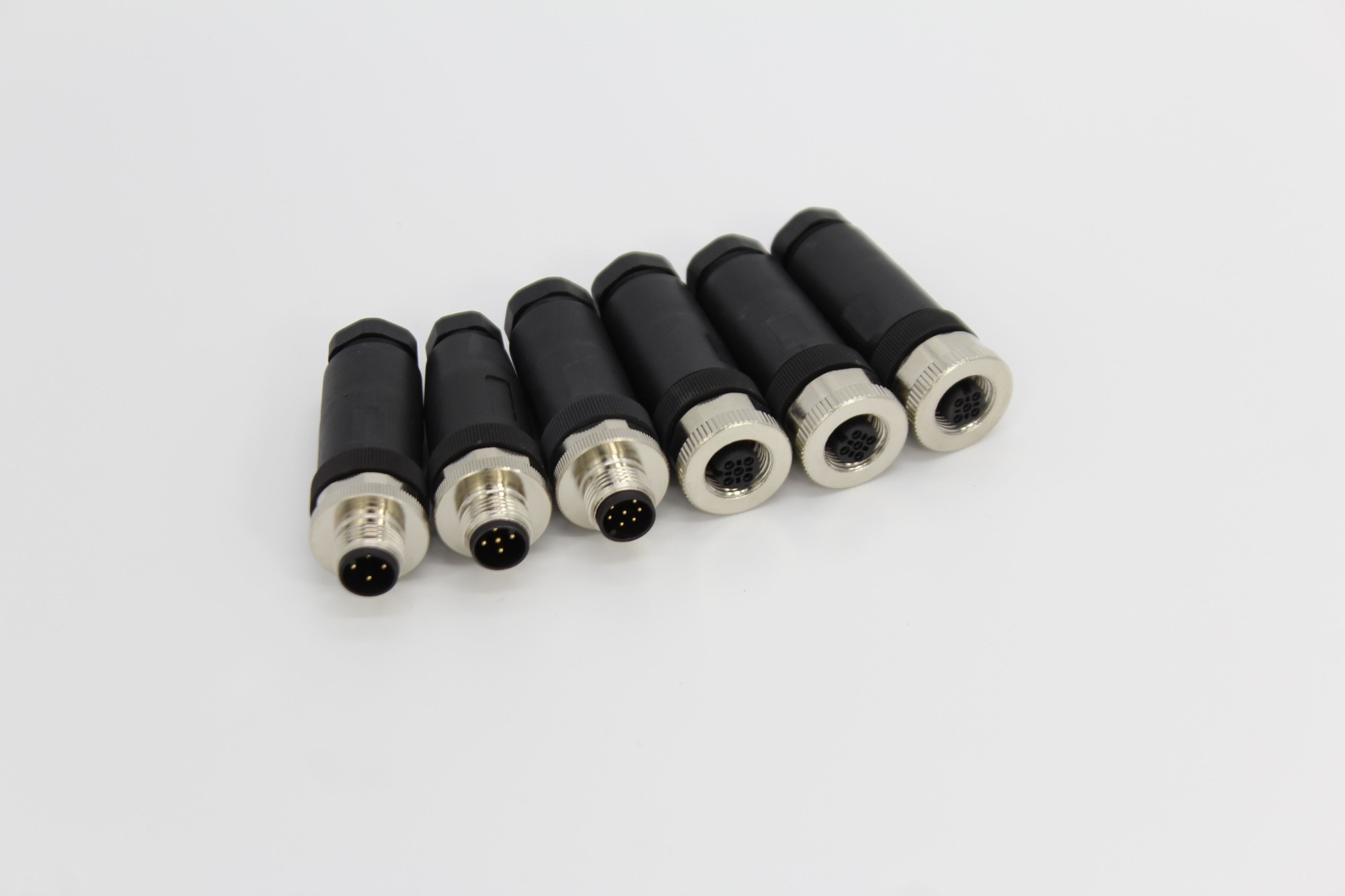

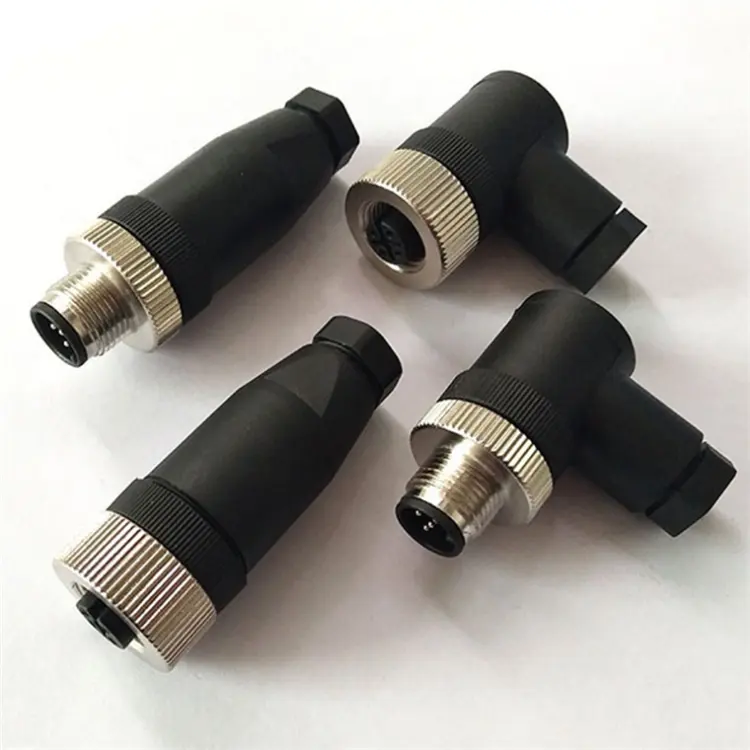

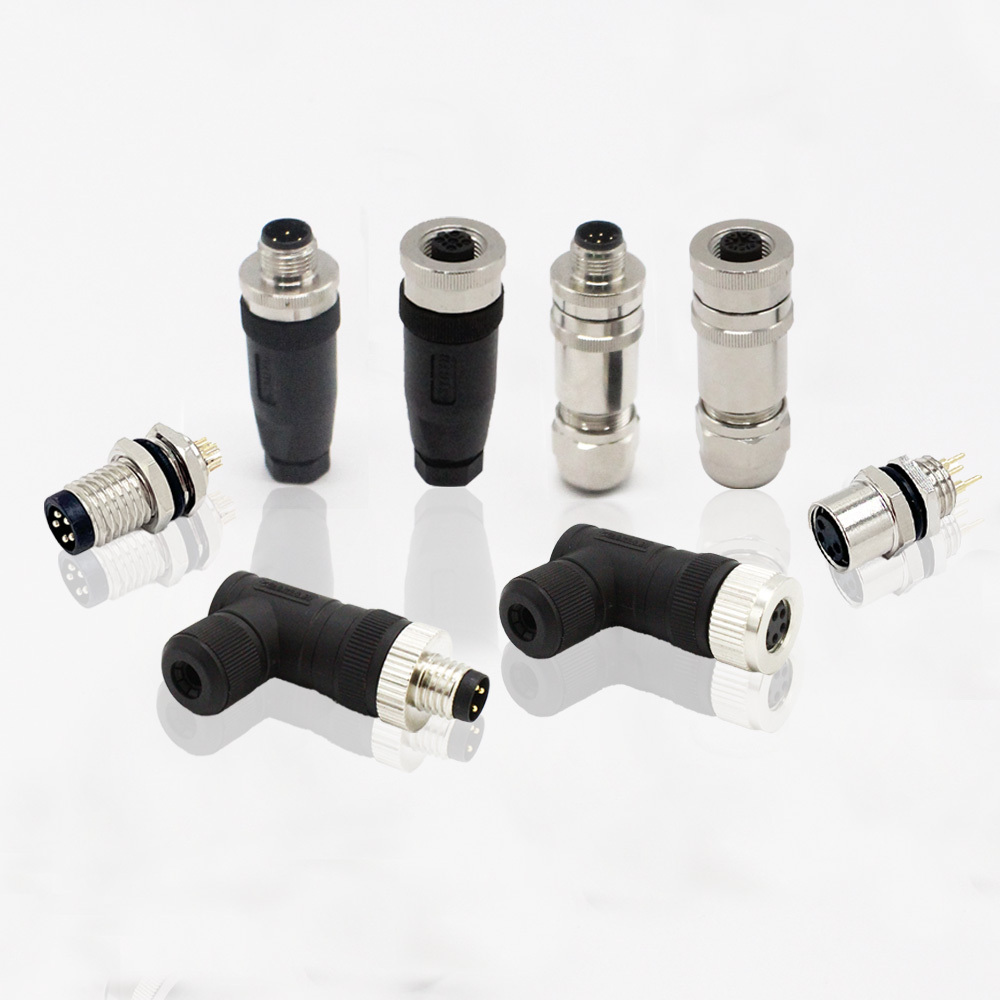

Exporters Round waterproof connector m12
This m12 electrical connector are widely used in the aerospace, automotive, electric power, mechanical, automation, as well as the electrical service industry. We design and produce according to international and the U.S. standard, our products can substitute European, US and Taiwan connectors, own the same quality.
|

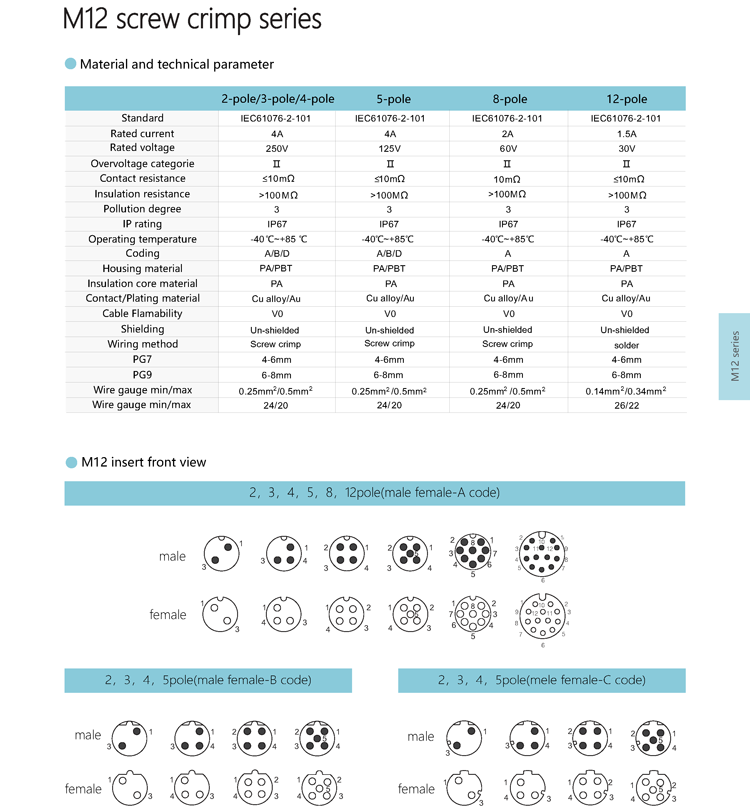

Design Standard
|
IEC/EN 61984
|
|
Cable diameter
|
≤Ф 4mm~ ≤Ф 8.0mm
|
|
Shell material
|
Zinc alloys with nikelplate
|
|
Contact material
|
copper( silver/ gold plated)
|
|
Insert material
|
PA66+GF20%
|
|
Assemble way
|
assemble board
|
|
Solder cup mouth aperture
|
1.1mm
|
|
Solder inter diameter
|
1mm
|
|
Rated current/voltage
|
3A-5A, 150V-260V
|
|
Operation limit voltage(AC.V.rms)
|
125V, 200V
|
|
Withstanding voltage( AC.V.rms) 1minute
|
1500
|
|
Insulation resistance (MΩ MIN) at DC 500V
|
1500
|
|
contact resistance (MΩ MAX.) at DC 1A
|
5, 10
|
|
Mating cycle
|
500
|
|
MOQ
|
1 PCS sample offer
|
|
Places of origin
|
Xiamen,Fujian,China(Mainland)
|
|
OEM
|
Yes,we accept
|
|
Payment terms
|
100 % T/T,escrow,MasterCard credit card,e-Checking,Paypal,VISA
|
|
Delivery time
|
3-45 days depends on buying stock or OEM order
|
Founded in 2015, Xiamen Leaka Electrical Equipment Co., LTD. specializes in high-performance connectors and connectivity solutions. Located at No. 101, Huizu Road, Haicang, Xiamen, Fujian, our company offers excellent transportation access. We boast a rigorous quality management system, an innovative R&D team, a comprehensive testing laboratory, and dedicated service staff, ensuring high-quality products at competitive prices. Our product range includes underwater connectors, M5 to M23 connectors, push-pull connectors, aviation and circular connectors, heavy-duty connectors, and wire harnesses. With waterproof ratings from IP65 to IP69K, our products are widely used in industrial automation, marine equipment, new energy, communications, lighting, railway, and security sectors. Complying with international standards, our products are compatible with major brands and customizable. ISO9001:2015 certified, our products are popular in China and exported to 56 countries. We welcome global collaboration for a brighter future.
We are a dynamic team with extensive experience in the Electrical Connectors industry.
Extensive Reach: Our products are distributed in over 40 countries, including Russia, Australia, the USA, the UK, Germany, Ukraine, Iran, Romania, Hungary, Mexico, Brazil, Chile, Canada, Spain, and Colombia. We have established agents in the USA, Australia, Singapore, Kuwait, and Russia, ensuring top-notch service for our clients globally.
Our commitment to innovation drives our extensive annual research and development efforts, resulting in numerous product patents. We pride ourselves on having a skilled team equipped with both technical expertise and managerial acumen.
Certified for quality and excellence, our company has successfully completed professional quality system certification, CE certification, SGS audit, and TUV audit, ensuring we deliver products of the highest quality.
Various product testing equipment to ensure product quality, so that customers are more assured.
Our customers have multiple transportation options to choose from:
Q: How can I get after-service?
A: If the issue is caused by us, we will send you the spare parts for free. For man-made problems, we will also provide spare parts, but they will be charged. Feel free to call us directly for any issues.
Q: How can I trust your company?
A: With over 10 years of professional design experience, we offer suitable suggestions and the lowest prices. Our products are assessed by third parties, and we hold national patents and CE, ISO certifications. We excel in manufacturing hydraulic balers and hydraulic shears.
Q: Is your price competitive?
A: We provide high-quality machines at the best factory prices, ensuring superior products and services.
Q: Why choose us?
A: We are a High-tech Enterprise, AAA Contract and Trustworthy Enterprise, and AAA Technology Consulting Firm. We manufacture general ceramics authorized by the USA FDA and have obtained ISO9001 certification.
Q: What are the features of the Steel Platform with Plastic coating finish?
A: The platform surface is color plastic sprayed, offering a competitive price compared to aluminum alloy and hot-dip galvanized surfaces. Hot-dip galvanized steel platforms provide good anti-corrosion properties and are cheaper than aluminum alloy platforms.
Q: How is your price level?
A: We offer factory direct sales with a complete production line, from platform to main parts. We have a maximum 1.2 MT die-casting machine for producing metal parts of hoists.
Q: How does your factory ensure quality control?
A: We have CE certificates and offer a one-year quality warranty along with lifetime technical support.
Q: What payment terms do you accept?
A: We accept T/T, L/C, Western Union, MoneyGram, PayPal, and other methods are welcome.
Q: How do you arrange shipment?
A: We ship by sea, train, air, or express, typically within 15-20 days after receiving the deposit.
