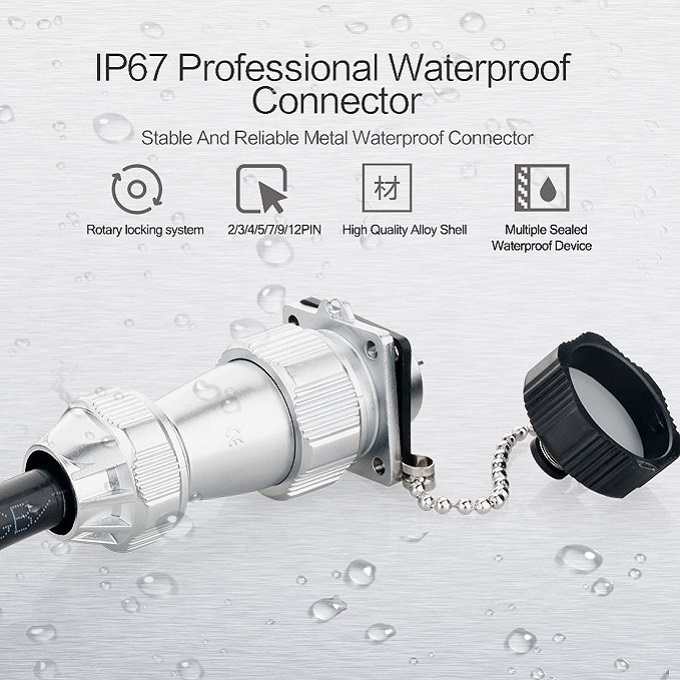

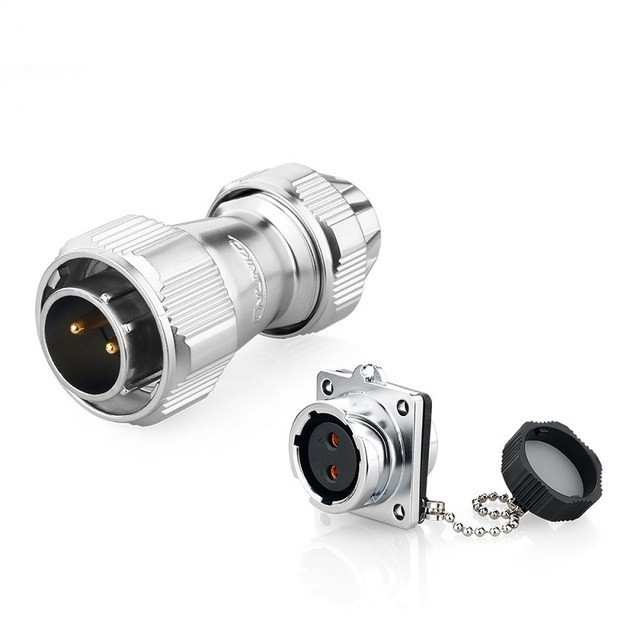

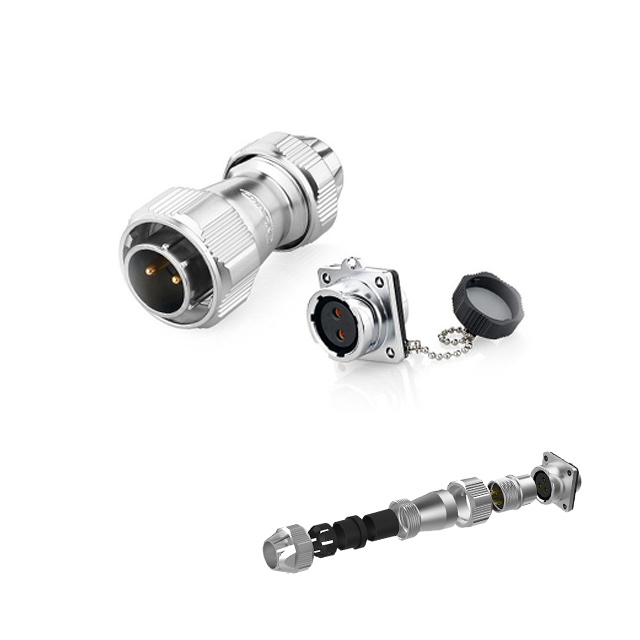

Suppliers Cnlinko YZ20 2-20 pin waterproof connector
1. Product Introduction

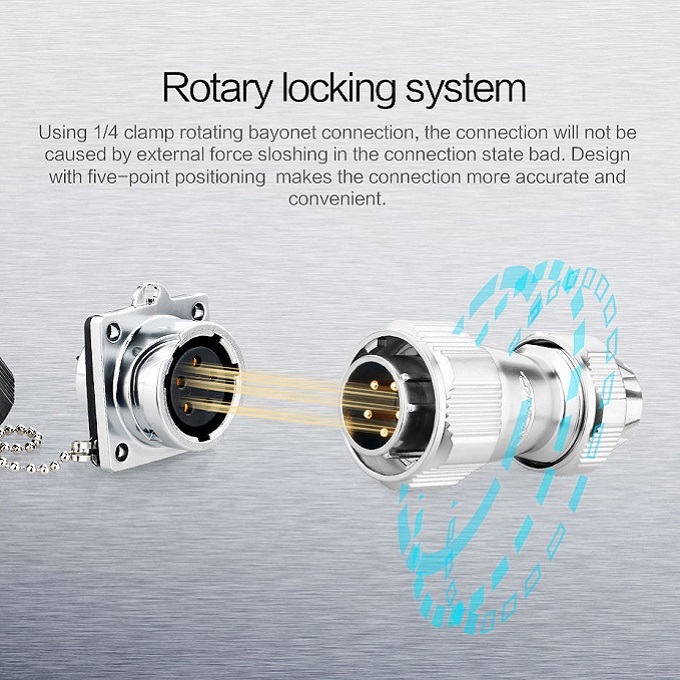

The connector is 1 / 4 snap connection, stable and safe;
20mm installation size;
Fast and simple nut design locking system;
The suspended dust cover design can effectively prevent the entry of foreign matters in non working state, with high safety performance and convenient operation;
2-12 core optional;
Humanized design of anti slip outer ring;
The product meets the protection grade of IP65 / IP67 when connected.
2. Product Specification
| Number of Contact | 2, 3, 4Pins | 5, 7Pins | 9,12Pins |
| Wire Diameter Range | Φ8~12mm | Φ8~9mm | Φ5.5~7mm |
| Rated Current | 20A | 12A | 5A |
| Working Voltage | 500V | 500V | 400V |
| Insulator Resistance | ＞500mΩ | ＞500mΩ | ＞500mΩ |
| Mating Cycle | 500 | 500 | 500 |
| Protection Degree | IP65/IP67 | IP65/IP67 | IP65/IP67 |
| Termination | Solder | ||
| Coupling | Bayonet | ||
| Shell Insulator Material | High Performance Engineering Plastics | ||
| Metal | Zinc Alloy | ||

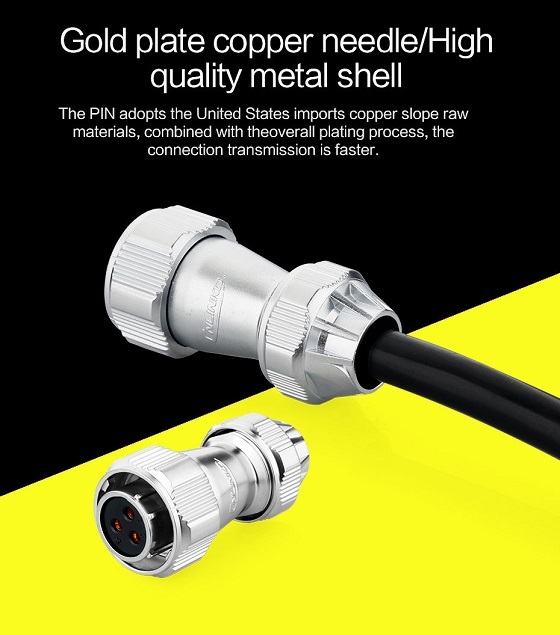

| Contact | Copper(Gold-plated) | ||
| Waterproof Ring | Silica Gel | ||
| Flame Retardant Grade | UL94-V0 | ||
