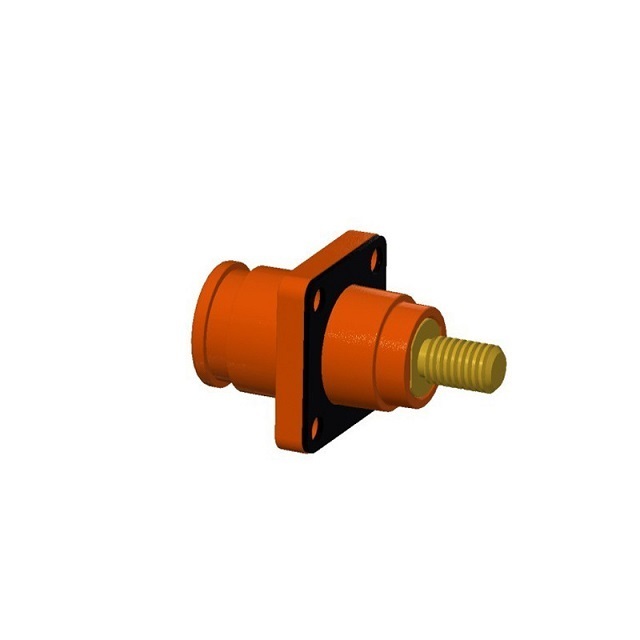

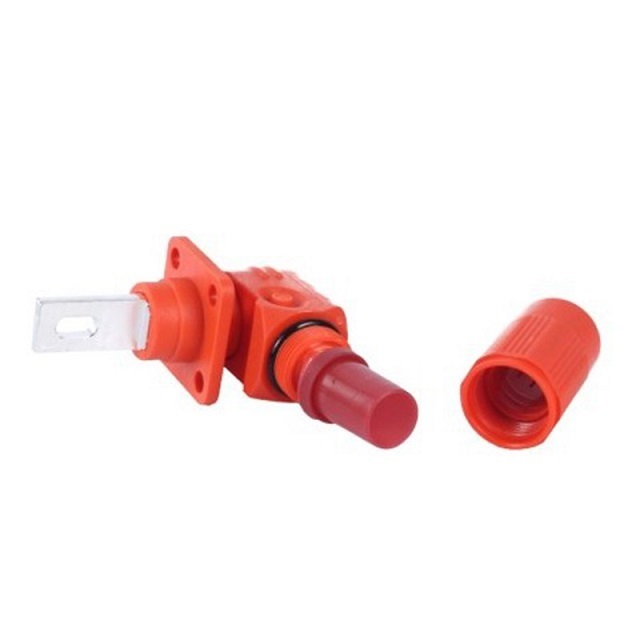

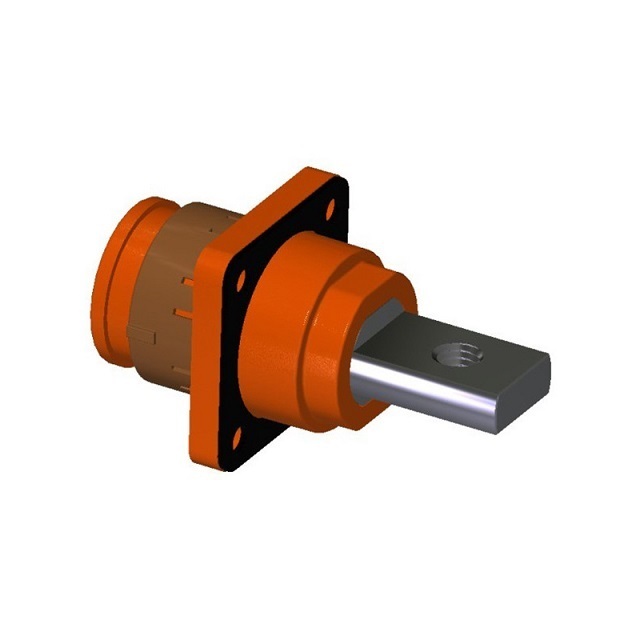

Suppliers 120A High Current Circular Angle Plug Energy Storage Connectors
1. Product Introduction Plug Energy Storage Connectors
The connector can be unlocked with one hand for fast and secure connection to any power distribution/storage system. When the plug is inserted into the socket, there will be a clicking sound, press the button to pull out the plug.
2. Product Specification Energy Storage Connectors Plug
| Mechanical Properties | Tool-Free Mechanical Locking |
| High Cycles Durability | 3000 Cycles Min |
| Rated Current | 120A |
| Rated Voltage | Max. 1000V DC |
| Contact Material | 0.2mΩ |
| IP Level | IP67 |
| Temperature Range | -40℃~105℃ |
| Flammability | UL94V-0 |
| Certificate | RoHS |
3. Company Profile
4. Our Advantages
We provide free technical services on connector applications and problems.
Visit and introduce our factory free of charge.
We provide process design and verification free of charge.
We can guarantee delivery on time.
A specially assigned person shall closely follow up all orders and inform customers in time.
All after-sales service requests will be answered within 24 hours.
5. FAQ
