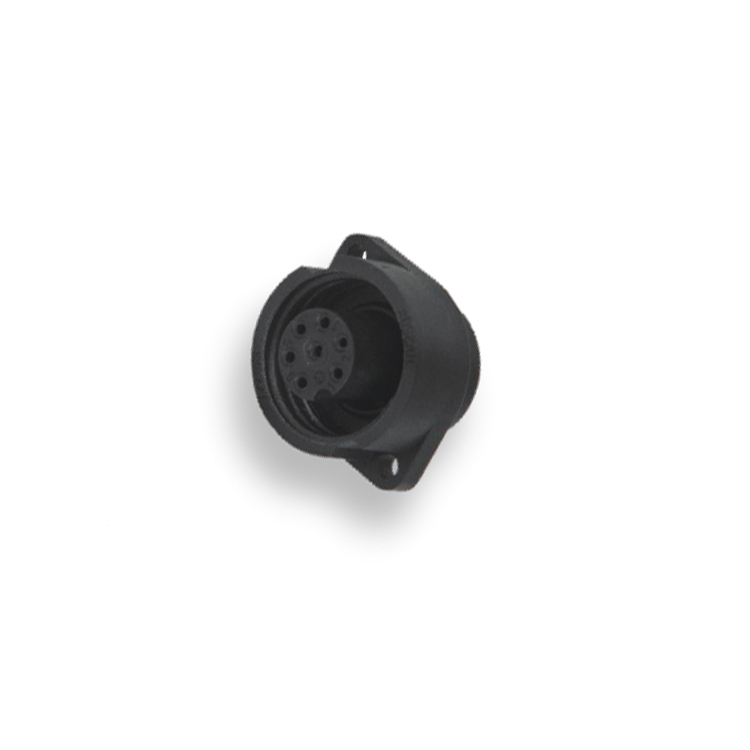

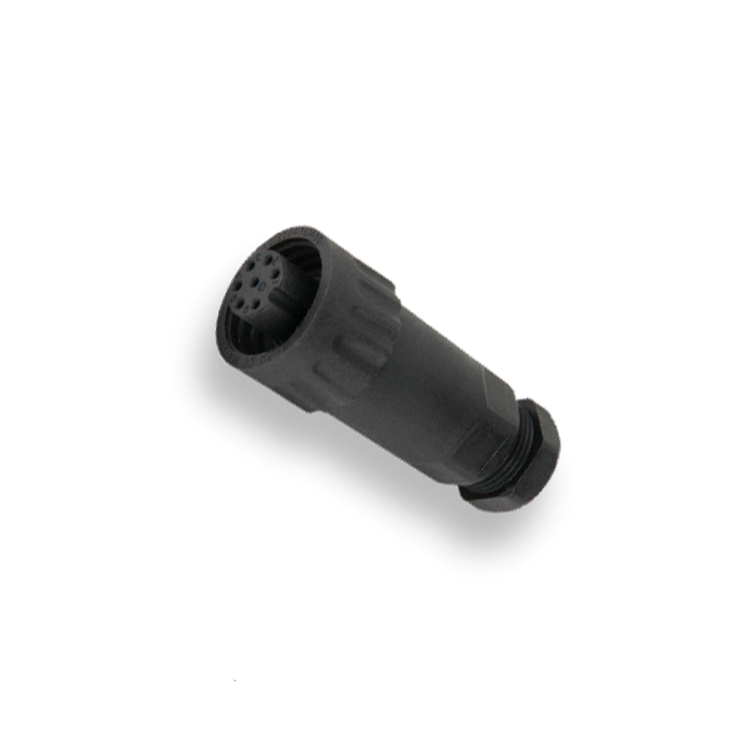

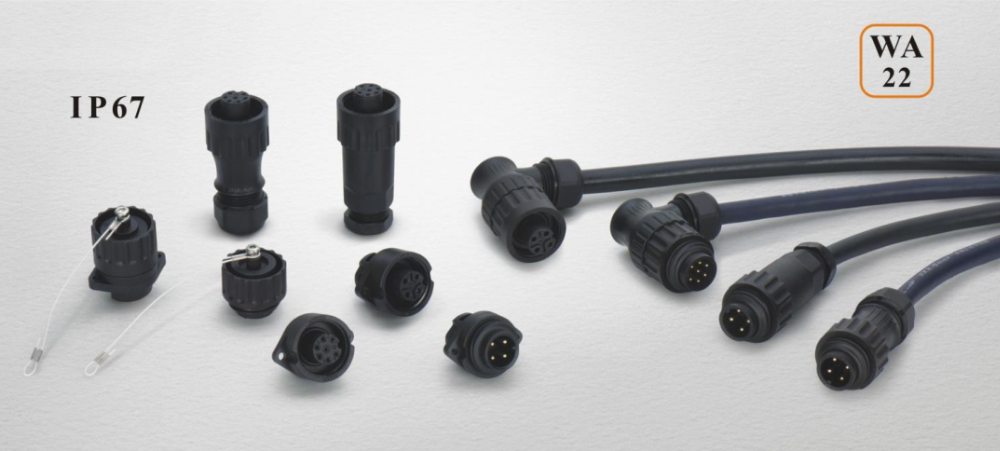

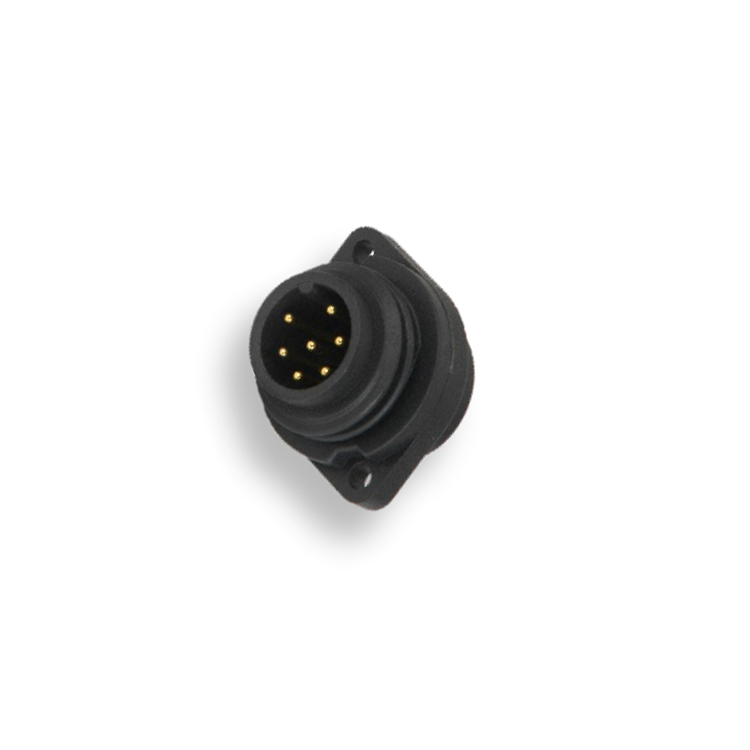

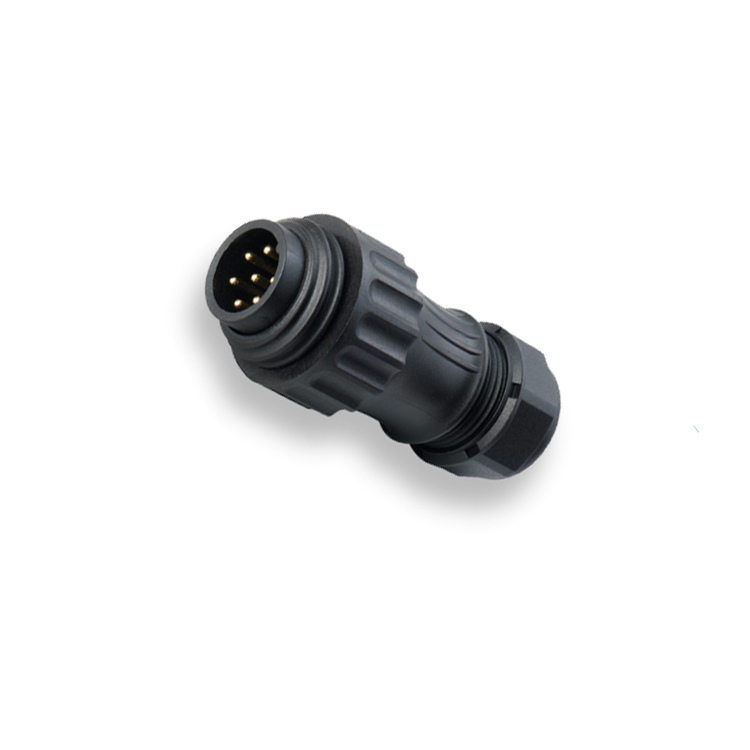

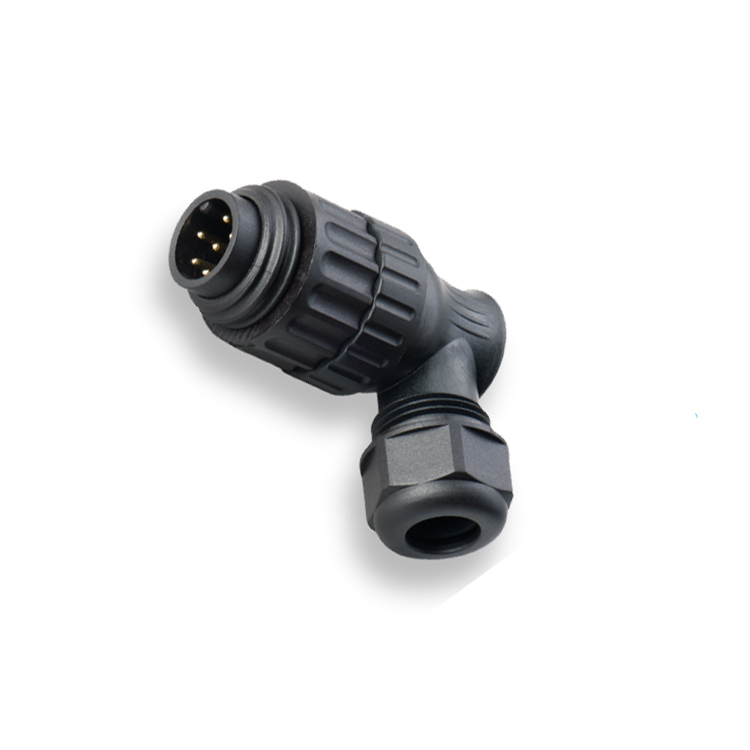

IP67 Waterproof WEIPU WA22 Aviation Male Female Plug Circular Connector

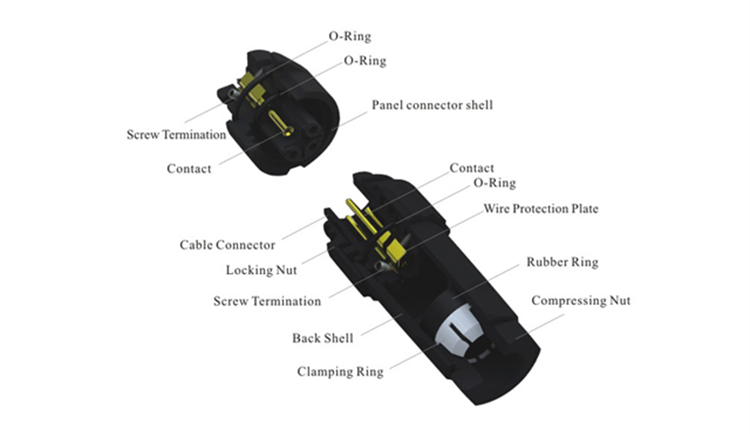

1) Materials and Craftsmanship: The WEIPU WA22 aviation connector utilizes thermoplastic insulation, with some models featuring a PA66 thermoplastic housing with a V-0 flame retardancy rating. The internal core is made of copper alloy, and the contacts are gold-plated, providing excellent conductivity and corrosion resistance.
2) Performance Parameters: Rated voltage 400V, rated current 16A, withstand voltage 2000V, insulation resistance 2000MΩ, operating temperature -40°C-85°C, and plug-in/plug-out life of 500 cycles.
3) Connection: Threaded locking and crimping options are available for easy and reliable connection.
4) Protection: IP67 rated for dust and water resistance, suitable for use in harsh environments.
| Coupling | Threaded |
| Termination | 4Pin: Screw/ 7Pin: Solder |
| Shell material | Nylon66 |
| Contact material | Brass with gold plating |
| Mating cycle | 500 |
| Temperature range | -40℃~+85℃ |
| Rated Current | 4Pin: 16A/ 7Pin: 10A |
| Rated Voltage | 4Pin: 400V/ 7Pin: 250V |
| Test voltage | 2000V |
| Insulation resistance | 2000mΩ |
