| Coupling | Threaded coupling |
| Shell material | Zinc alloy chromplate |
| Contact material | copper( silver/ gold plated) |
| Insert material | bakelite |
| Rated current/voltage | 5A, 125V |
| Cable diameter | ≤Ф 8 mm |

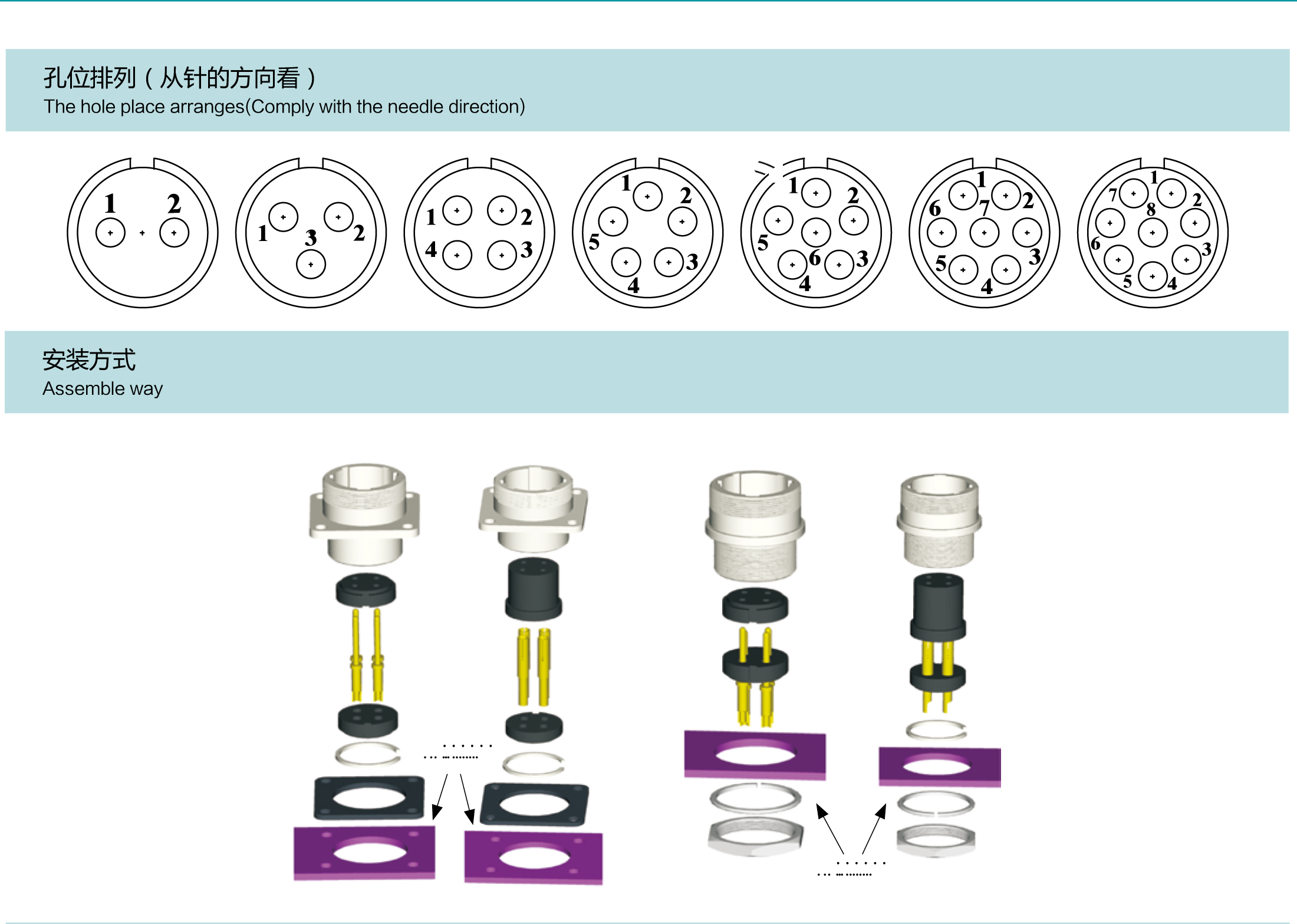

| Assemble way | assemble board |
| Solder cup mouth aperture | 0.9 mm |
| Solder inter diameter | 1 mm |
| Operation limit voltage(AC.V.rms) | 200V |
| Mating cycle | 500 |
| Temperature | -20℃~+85℃ |
| OEM | Yes,we accept |
| Delivery time | 3-45 days depends on buying stockage or OEM order |
