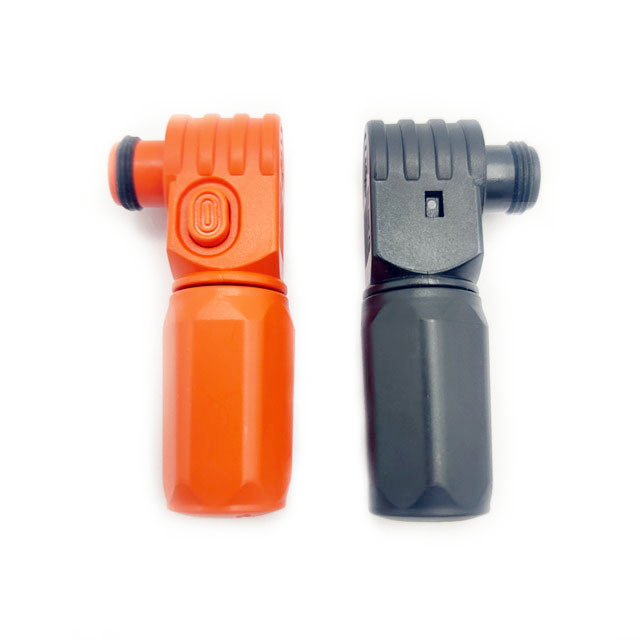

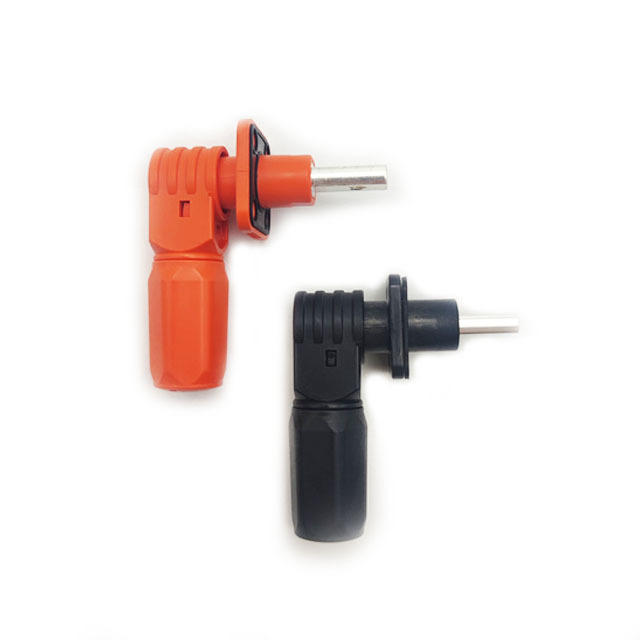

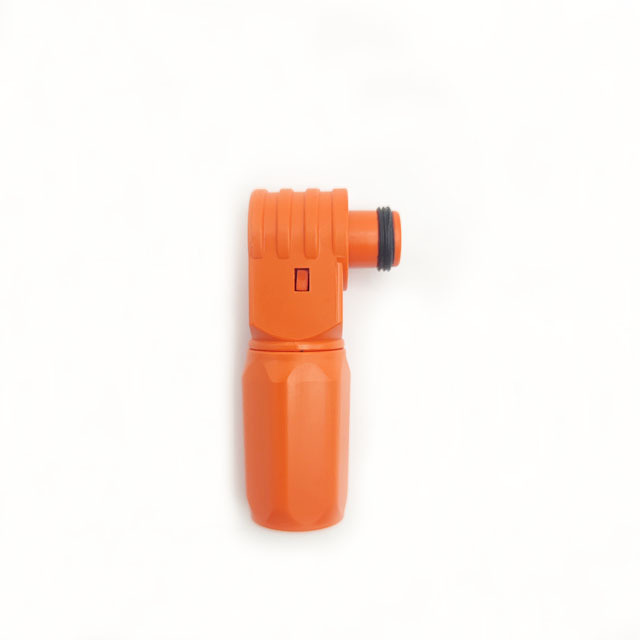

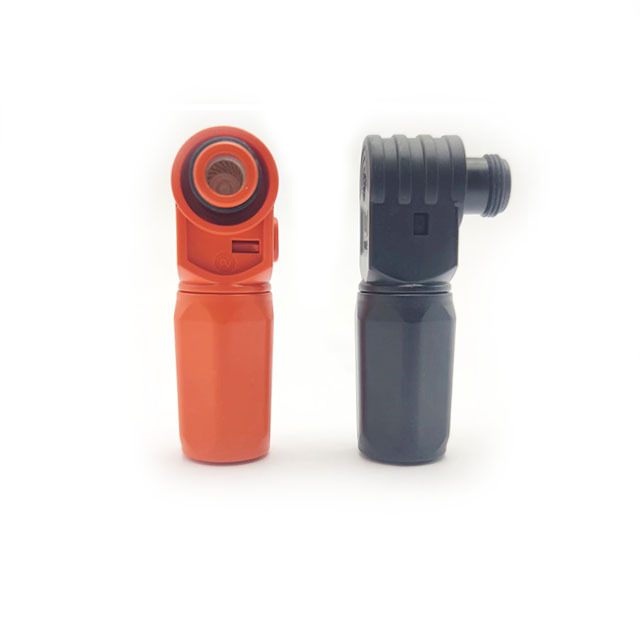

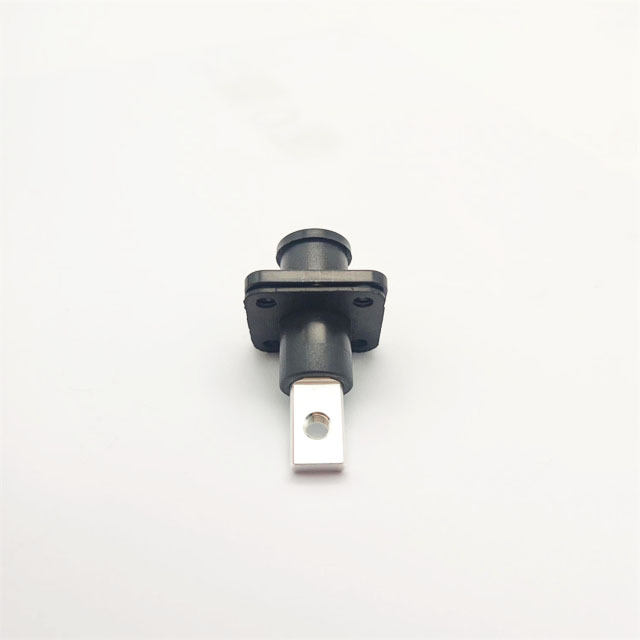

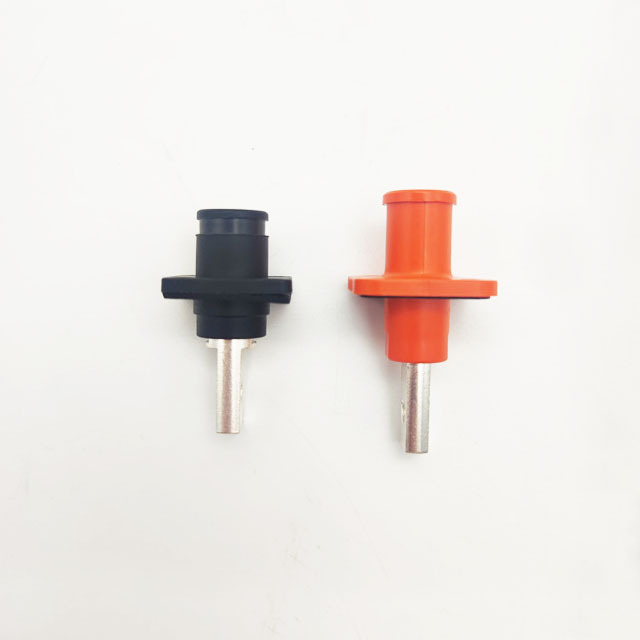

Energy Storage High Current Battery Connectors
1. Product Introduction
This high-current energy storage connector is composed of a plug, a socket and a rear insulating shield. It adopts a detachable and sealed design, which is firm and compact, easy to install, and has excellent electrical conductivity.
The locking method of automatic locking can unlock the connector with one hand and press the unlock button, so as to connect any power distribution/energy storage system conveniently and quickly.
2. Product Parameter
| Current(DC) | 120A, 200A |
| Voltage | 1500V |
| Dielectric Strength | 5000V |
|
Temperature Rise |
45K Max |
| Flammability Rating | UL94V-0 |
| Cable Diameter | 16~25m㎡(120A); 35~50m㎡(200A) |
| Contact Resistance | ≤0.5mΩ |
| Color | Orange, Black, Claret |
| Material | PA66/T2 |
| Wiring Mode | Crimp Connection |
| Protection Degree | IP67 |
3. Express & Payment
4. Company Profile
Xiamen Kabasi Electric Co., Ltd. is a high-tech enterprise integrating R&D, production, sales and service of connectors. Located in Haicang District, Xiamen City, Fujian Province, the company has advanced production equipment and testing instruments. It can develop and produce 10A-500A DC connectors, waterproof connectors, watertight connectors, M series connectors, terminal blocks and connector cables and other products. In the fields of new energy storage cabinets, electric motorcycles, plant protection drones, new energy power exchange for towers, 5G base stations, and PACK energy, a number of cooperation projects and a number of patented technologies have been obtained.
Adhering to the core values of "innovation", "ideal", "individuality", "knowledge" and "win-win", the company completely and satisfactorily fulfills customer requirements and creates platinum-like quality. Focus on all kinds of connector products, make breakthroughs and innovations, and create a better future.
5. Why Choose US!
We are an experienced factory;
We have a variety of connector products and industrial cables for you to choose from;
We can print your logo on connector products;
We can customize colors and even styles according to your needs;
We can do OEM and ODM, also can provide sample service.
6. FAQ
